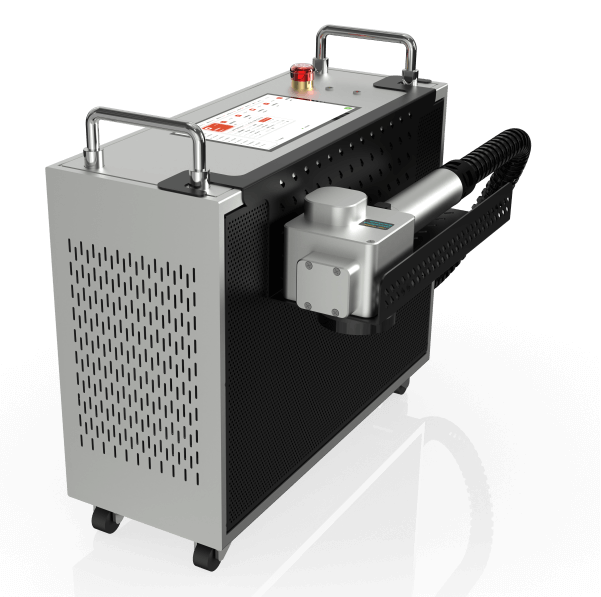

TINY 50-300W Pulsed Laser Cleaning Equipment
- The body is compact and lightweight, and can be carried around with a safety case.
- Auxiliary focusing module, real-time display of processing distance.
- Efficient and non-damaging, suitable for various substrates.
- Red light auxiliary preview, precise positioning of cleaning laser, and convenient adjustment of system parameters.
- Main control options: industrial serial port screen, wireless tablet, mobile phone terminal.
Advantages:
The TINY series of pulsed laser cleaning equipment from METLASER features excellent portability, a compact and lightweight laser head, convenient system parameter adjustment, and wireless control. Its ultra-small size, when combined with a safety case, achieves ultimate portability. It can be carried around for on-site sampling and operations, and is easy to store.
It is applicable to industries such as mechanical processing, mold cleaning, food processing, and electronic circuits. Leveraging its precise positioning capability, it can handle workpieces of various shapes and achieve efficient cleaning results.
It complies with international certifications such as CE/FDA, is free of chemical pollution, and features a simple operation with a multi-language interface for easy use. It also has the advantages of low consumption, maintenance-free, one machine covering multiple scenarios, and seamless connection between sample production and mass production. It is the preferred solution for your laser cleaning needs.
Innovation and Quality:
At METLASER, driving technological innovation and upholding high product quality standards are our top priorities. All research and development, production and testing processes are completed in a closed loop within its own professional laboratories and standardized workshops, ensuring quality control from the source. Moreover, by leveraging the advantages of wireless networks, it breaks through geographical restrictions to provide immediate and professional remote maintenance and technical support to customers worldwide.
Interface:
The TINY series pulsed laser cleaning system is equipped with IO ports that interface with automated equipment. The laser on/off operation of the device can be directly controlled via a teach pendant.
Control:

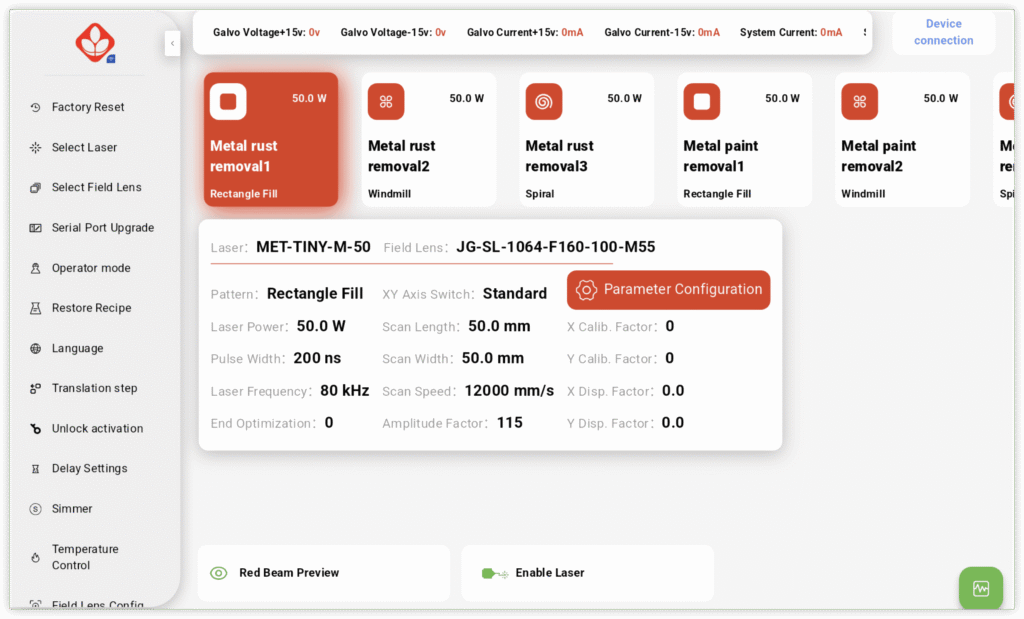

The TINY 50-300W pulsed laser cleaning equipment offers main control methods via an industrial serial port screen, wireless tablet, and mobile phone.
TINY Series | ||||
50W | 100W | 200W | 300W | |
Characteristics | MET-TINY-M-50-A | MET-TINY-M-100-A | MET-TINY-J-200-1/5-A | MET-TINY-J-300-1/5/10-A |
Operating Mode | Pulse | |||
Central Wavelength | 1064±3nm | 1064±6nm | 1064nm | |
Average Output Power | 51±1w | 105±5w | ＞200w | ＞300w |
Frequency Adjustment Range | 45～170KHz | 20～200KHz | 1～3000KHz | |
Pulse Width | 90～110ns | 150～190ns | 13～500ns | |
Maximum Pulse Energy | 1.1mJ | 1.6mJ | 2mJ/5mJ | 2mJ/5mJ/15mJ |
Output Stability | ＜5% | |||
Power Adjustment Range | 10～100% | 0～100% | ||
Length of Fiber Optic Armored Cable | 3m | 5m | 5/10/15m | |
Operating Voltage | AC 110/220V | |||
Maximum Power Consumption | ＜250W | <500W | ＜1000 | ＜1100 |
Laser Cooling Method | Air Cooling | |||
Storage Ambient Temperature | '-10～60℃ | |||
Operating Ambient Temperature | 10～40℃ | |||
Operating Ambient Humidity | 10%～95% | |||
Main Unit Dimensions | 378*138*242mm | 421*163*380mm | ||
Net Weight | 7.5kg | 8.8Kg | 18.8Kg | |

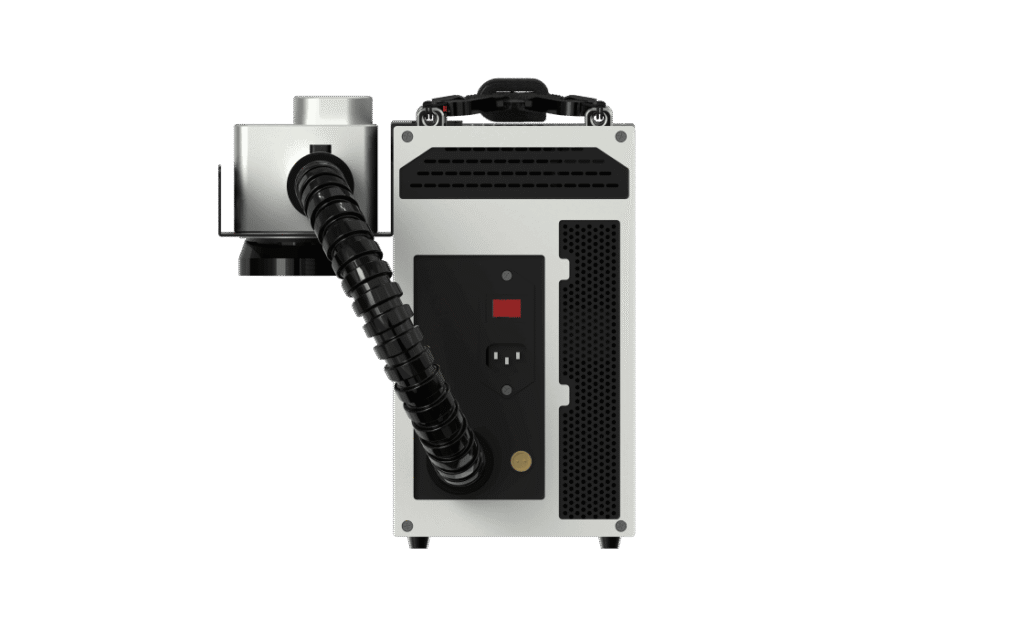

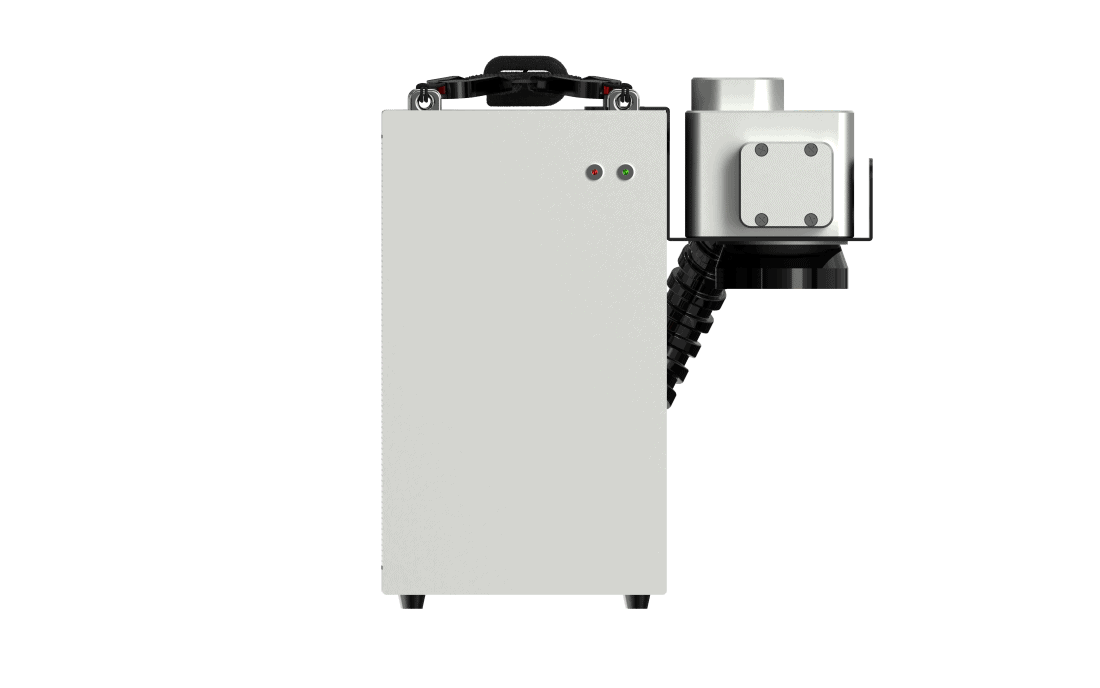

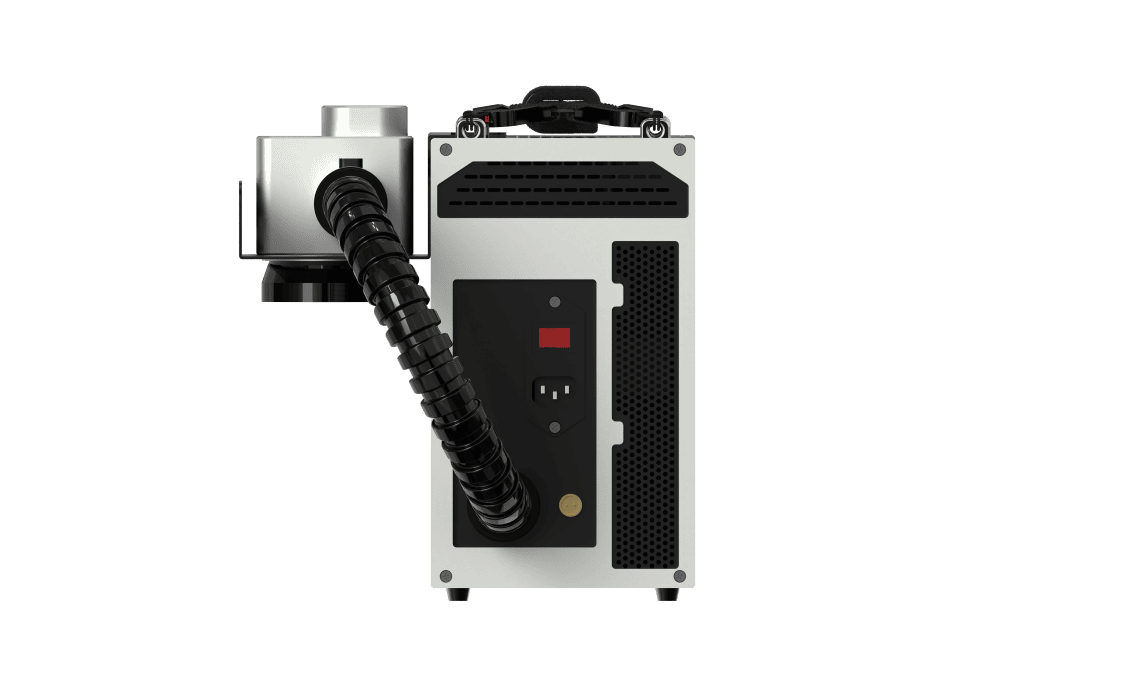

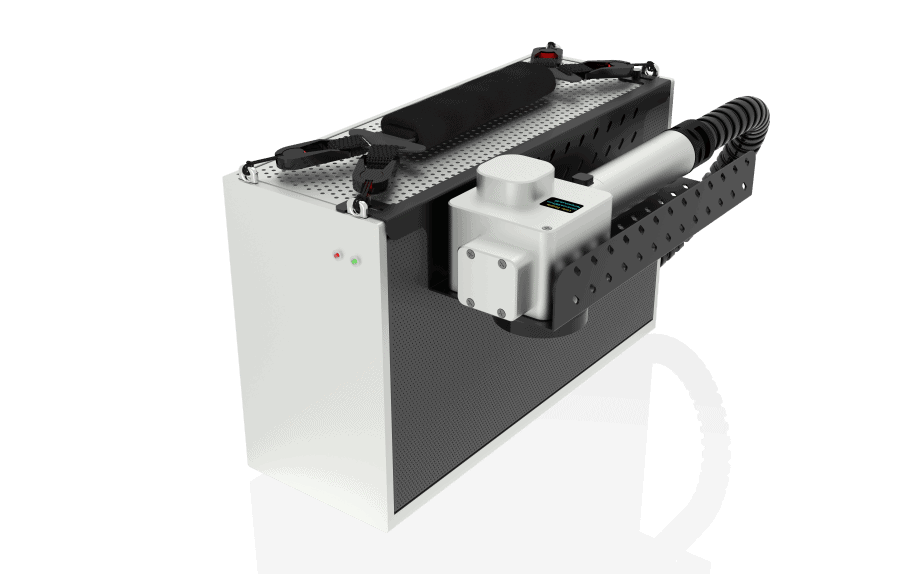

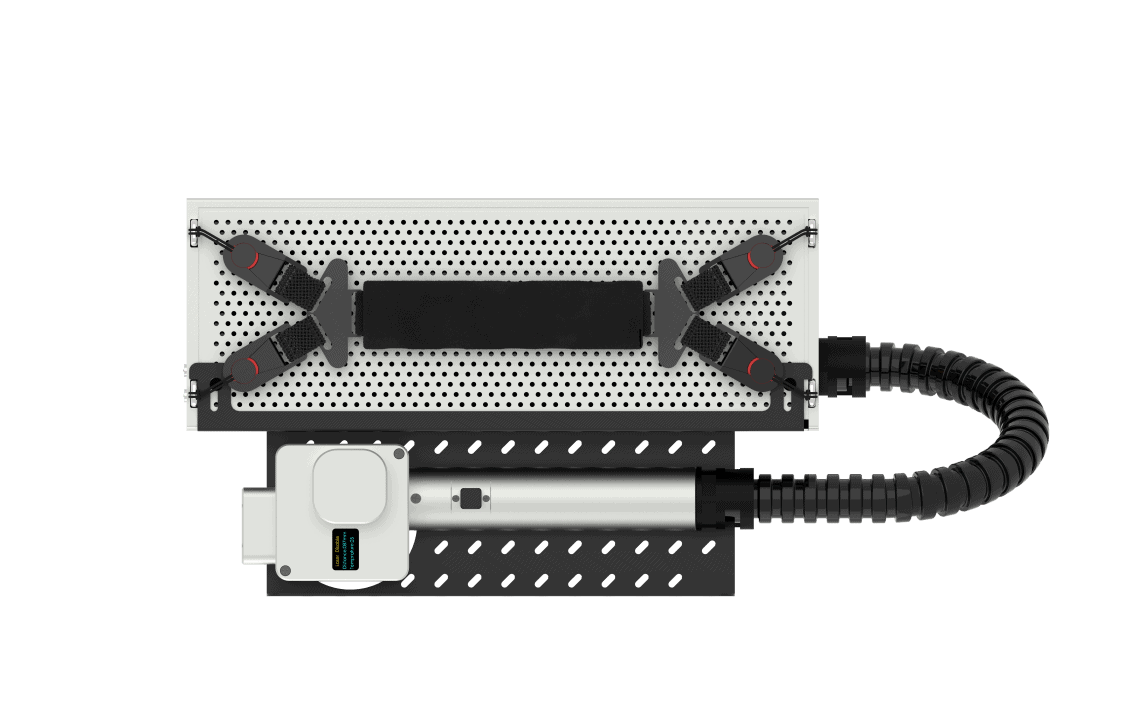

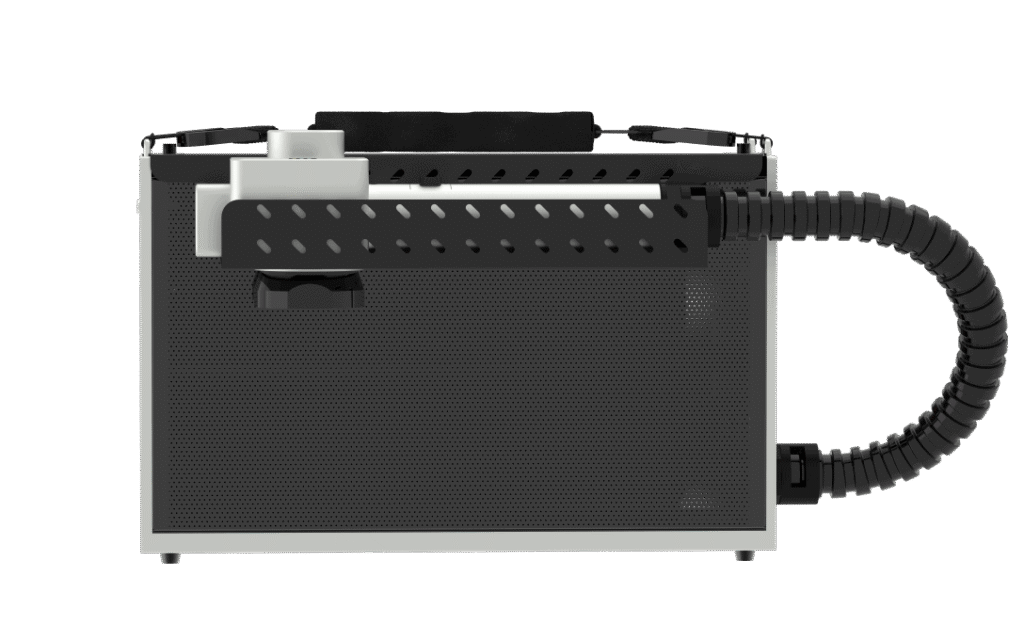

TINY 50-100W
Pulsed Laser Cleaning Equipment Picture
