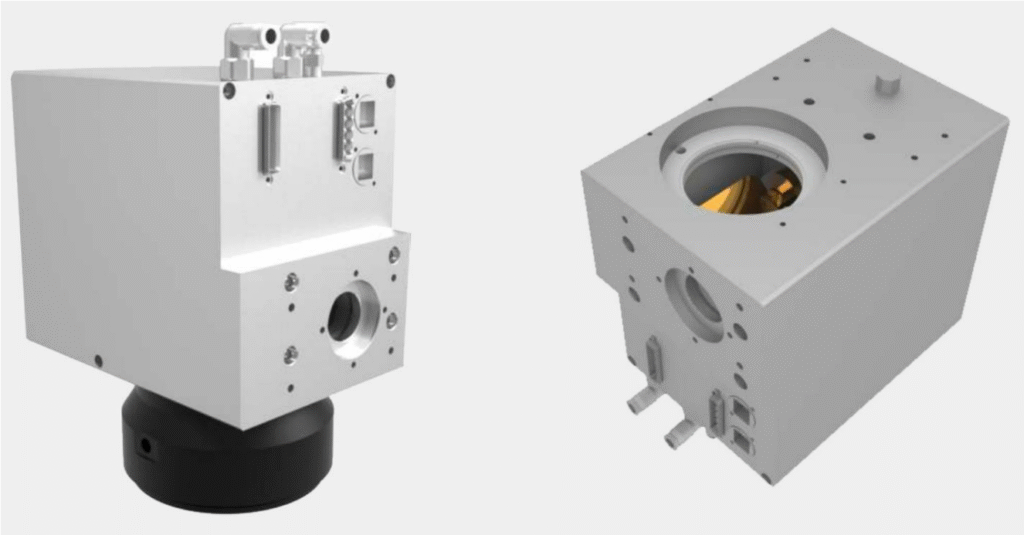

The METSCAN-30SS-I is an ultra-high-speed, large-aperture, high-precision laser galvanometer system that adopts an innovative digital drive algorithm. Even with a 30 mm clear aperture, it achieves an impressive maximum scanning speed of 200 rad/s.
The system features a fully enclosed housing design to significantly enhance stability and reliability in laser processing. Equipped with lightweight mirrors to optimize dynamic performance, it delivers higher machining accuracy. It is also compatible with standard F-theta lenses and telecentric lenses, making it suitable for a wide range of laser applications.
Key Technical Features
- Ultra-high-speed scanning: Maximum speed up to 200 rad/s, greatly improving processing efficiency.
- High-precision control: Repeatability of less than 8 µrad, ensuring excellent long-term stability.
- Water-cooled temperature control: Maintains system temperature between 22°C and 28°C, enhancing reliability during continuous operation.
- Low drift: Zero-offset drift < 25 µrad/°C, and 8-hour drift less than 43 µrad, ensuring consistent long-term accuracy.
The METSCAN-30SS-I is widely used in high-precision laser applications such as fine marking, micromachining, 3D printing, and semiconductor manufacturing, providing advanced and reliable solutions for high-end laser processing.
